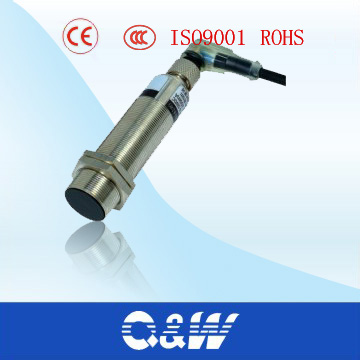

LM22-口口T
LM22-口口T
|
Outward appearance code |
LM22-口口T |
|||
|
Flush |
Detection distance |
7mm |
||
|
DC 6-36 VDC |
NPN |
NO |
LM22-3007NAT |
|
|
NC |
LM22-3007NBT |
|||
|
NO+NC |
LM22-3007NCT |
|||
|
PNP |
NO |
LM22-3007PAT |
||
|
NC |
LM22-3007PBT |
|||
|
NO+NC |
LM22-3007PBT |
|||
|
Two wire systerm |
NO |
LM22-3007LAT |
||
|
NC |
LM22-3007LBT |
|||
|
AC 90~250 VAC |
SCR control-lable silicon |
NO |
LM22-2007AT |
|
|
NC |
LM22-2007BT |
|||
|
NO+NC |
|
|||
|
Relay output |
|
|||
|
Non- flush |
Detection distance |
10mm |
||
|
DC 6-36 VDC |
NPN |
NO |
LM22-3010NAT |
|
|
NC |
LM22-3010NBT |
|||
|
NO+NC |
LM22-3010NCT |
|||
|
PNP |
NO |
LM22-3010PAT |
||
|
NC |
LM22-3010PBT |
|||
|
NO+NC |
LM22-3010PCT |
|||
|
Two wire system |
NO |
LM22-3010LAT |
||
|
NC |
LM22-3010LBT |
|||
|
AC 90~250 VAC |
SCR Control-lable silicon |
NO |
LM22-2010AT |
|
|
NC |
LM22-2010BT |
|||
|
NO+NC |
|
|||
|
Relay output |
|
|||
|
Output current |
DC |
200mA |
||
|
SCR/ Relay |
300mA |
|||
|
Output voltage drop DC/AC |
DC＜3V, AC＜10V, DC two wire＜3.9V |
|||
|
Consumption current |
DC12V＜8mA, DC24V＜8mA, AC＜10mA |
|||
|
Standard detected object |
18*18*1 A3 Iron |
|||
|
Repeated precision |
0.0036 |
|||
|
DC/AC Response frequency |
200Hz/10Hz |
|||
|
Working environment temperature |
-25°C~+65°C |
|||
|
Insulation resistance |
50MΩ |
|||
|
Shell material |
Metal |
|||
|
Protection grade |
IP67 |
|||
|
Altemative model at home and abroad |
--- |
|||
