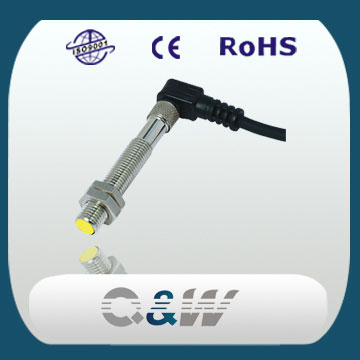

LM8-口口T
LM8-口口T
|
Outward appearance code |
LM8-口口T |
|||
|
Flush |
Detection distance |
1mm |
||
|
DC 6-36 VDC |
NPN |
NO |
LM8-3001NAT |
|
|
NC |
LM8-3001NBT |
|||
|
NO+NC |
|
|||
|
PNP |
NO |
LM8-3001PAT |
||
|
NC |
LM8-3001PBT |
|||
|
NO+NC |
|
|||
|
Two wire systerm |
NO |
LM8-3001LAT |
||
|
NC |
|
|||
|
AC 90~250 VAC |
SCR control-lable silicon |
NO |
|
|
|
NC |
|
|||
|
NO+NC |
|
|||
|
Relay output |
|
|||
|
Non-flush |
Detection distance |
2mm |
||
|
DC 6-36 VDC |
NPN |
NO |
LM8-3002NAT |
|
|
NC |
LM8-3002NBT |
|||
|
NO+NC |
|
|||
|
PNP |
NO |
LM8-3002PAT |
||
|
NC |
LM8-3002PBT |
|||
|
NO+NC |
|
|||
|
Two wire system |
NO |
LM8-3002LAT |
||
|
NC |
|
|||
|
AC 90~250 VAC |
SCR Control-lable silicon |
NO |
LM8-2002AT |
|
|
NC |
|
|||
|
NO+NC |
|
|||
|
Relay output |
|
|||
|
Output current |
DC |
150mA |
||
|
SCR/ Relay |
|
|||
|
Output voltage drop DC/AC |
DC＜3V, AC＜10V, DC two wire＜3.9V |
|||
|
Consumption current |
DC12V＜8mA, DC24V＜8mA, AC＜10mA |
|||
|
Standard detected object |
8*8*1 (A3 iron) |
|||
|
Repeated precision |
0.01 |
|||
|
DC/AC Response frequency |
500Hz/10Hz |
|||
|
Working environment temperature |
-25°C~+70°C |
|||
|
Insulation resistance |
50MΩ |
|||
|
Shell material |
Metal |
|||
|
Protection grade |
IP67 |
|||
|
Altemative model at home and abroad |
E2E-X1R5-M1 |
|||
